ULTRAFLEX
FEATURES

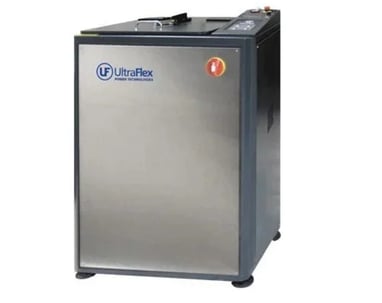

Centrifugal injection jewelry casting system with pneumatic movement for fast coil descent
Internal water cooling system with pressure and water temperature control
Centrifugal arm balancing with adjustable counterweight
Advanced digital control panel with status and diagnostics messages
Melting power regulation from 10% to 100%
DC motor with reduction gear and adjustable acceleration from 0.1 to 1 sec.
Max rotating speed – 500 rpm. Rotation timeout pre-set at 40 sec.
Auto locking of the chamber lid during centrifugal phase for maximum safety
Integral vacuum pump (EC-12 model)
Inert (argon or nitrogen) gas circuit included (EC-12 model)
Easy Cast J
ULTRAFLEX
Super Cast J
Fully automatic (one button) or manual casting cycle
Built-in vacuum pump and inert gas (argon or nitrogen) circuit
Coil rotation with arm and flask – metal is continuously heated and injected while the coil rotates
Accurate temperature reader with advanced temperature controller and metal emissivity regulation
Allows casting with precious stones in place
Advanced, highly efficient induction heating technology
Modern 5” full color LCD touch control panel
Multiple user programs with many pre-programmed settings
Special programs for titanium casting (Supercast J5 models)
Easy to install and very simple and safe to operate
ULTRAFLEX

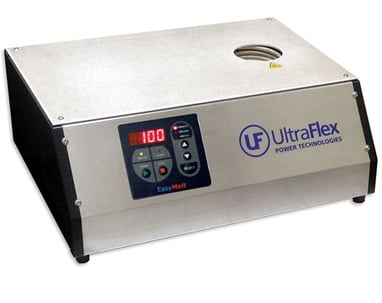

Easy MELT AIR 1
FEATURES
Adjustable Timer (1 – 30min) with audible sound
Power regulation (10 – 100%)
Build-in temperature reader
with optional thermocouple probe
LED panel displaying Power, Time and Temperature
Effective coil overheating protection
